T-N.T. S+ Barrel | BB Alignment & Stability

Why Is It Called the “Eclipse Barrel”?

【How to Identify a T-N.T. Eclipse Barrel】

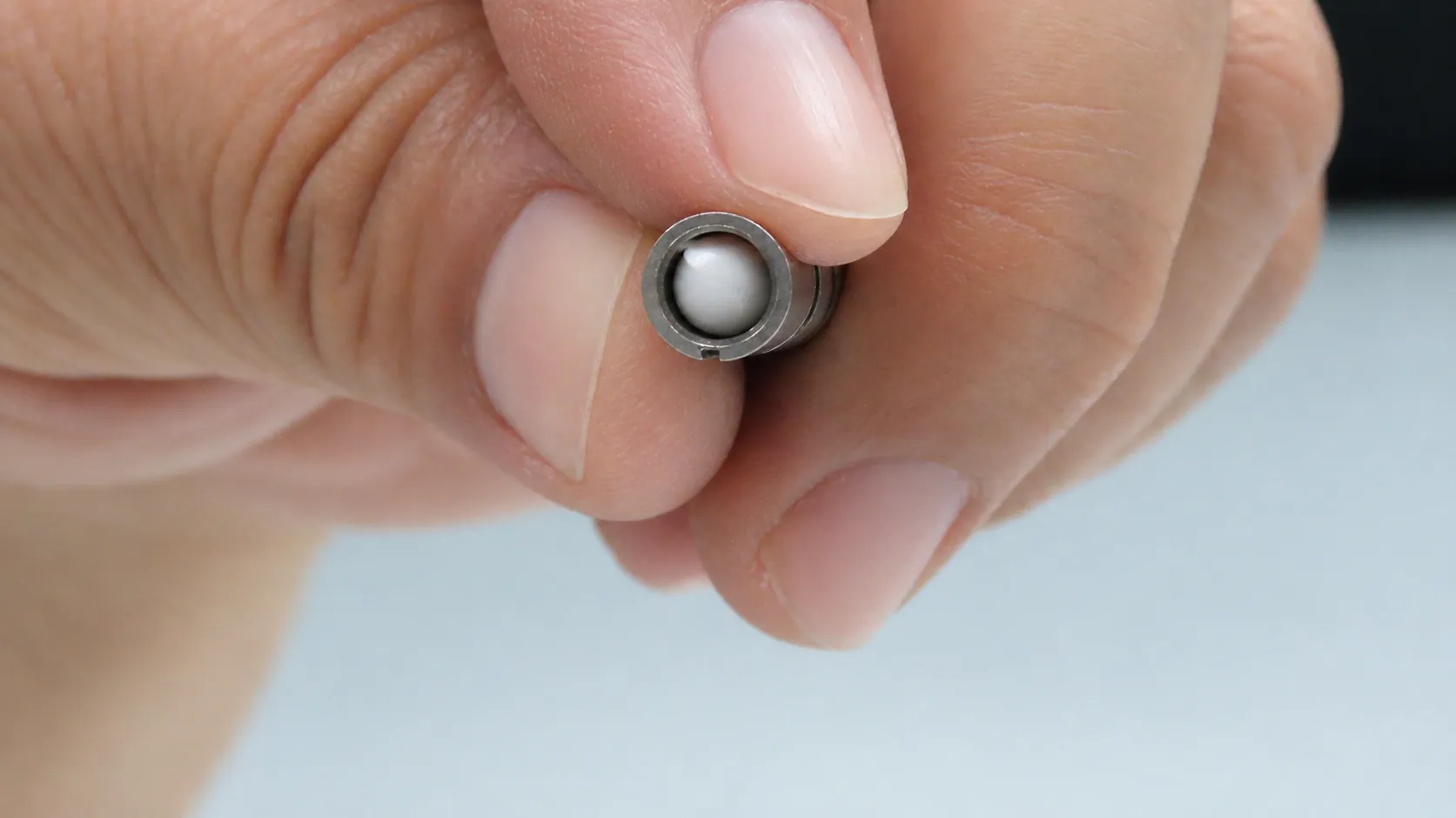

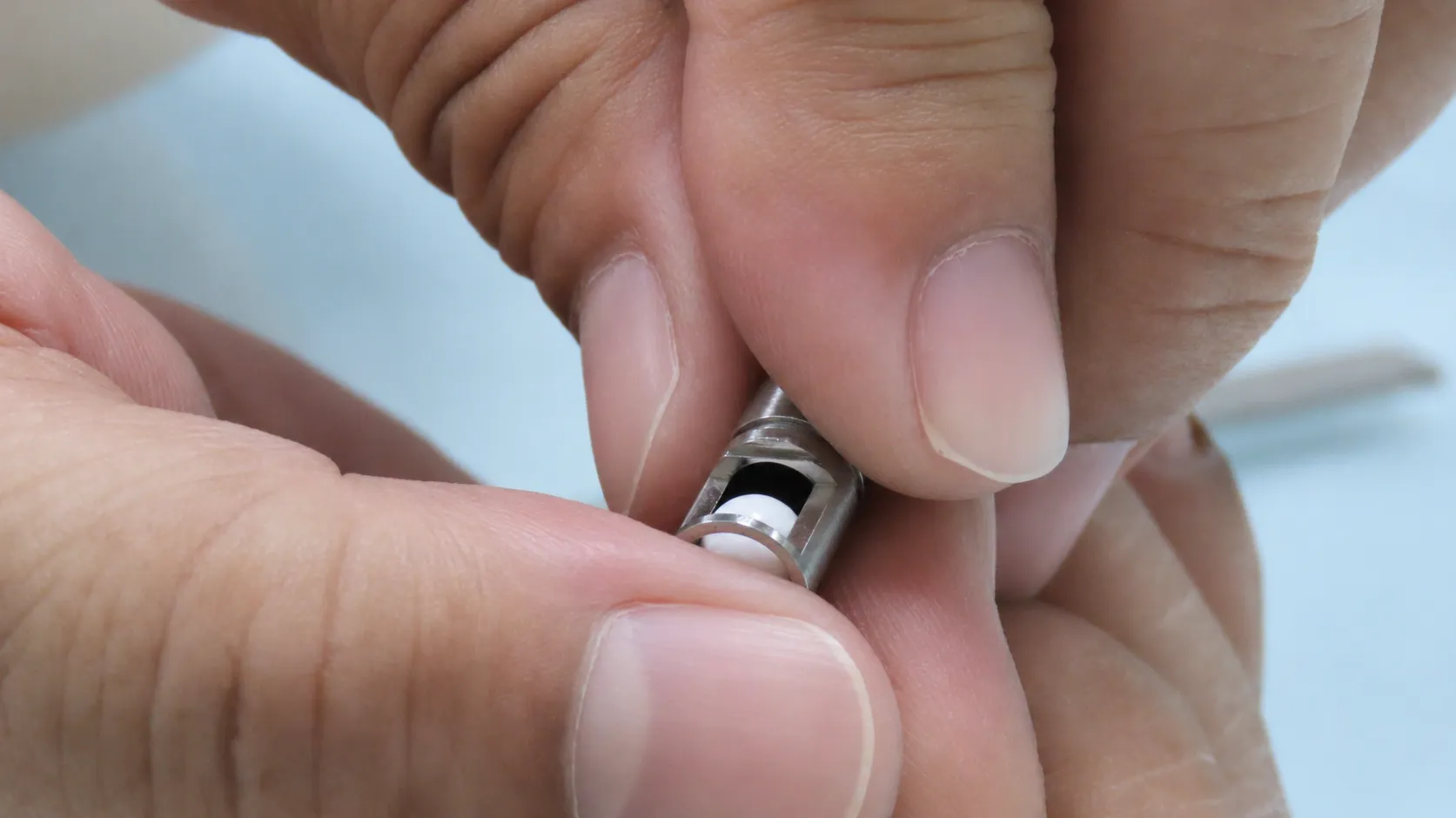

  1. Place a BB at the barrel entrance and lightly hold it in position through the HOP window area.

  2. Shine a flashlight or another light source through the muzzle end of the inner barrel.

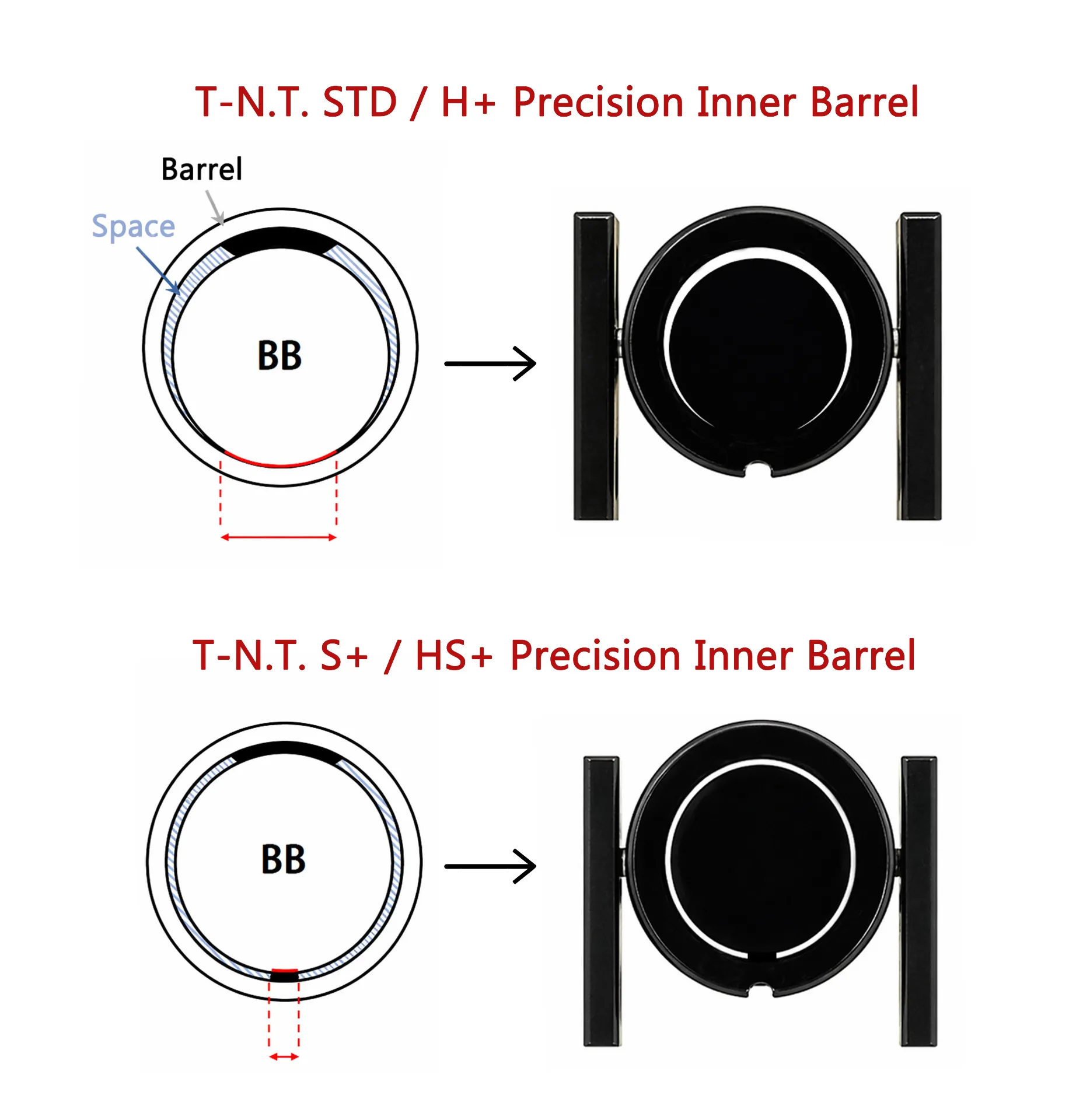

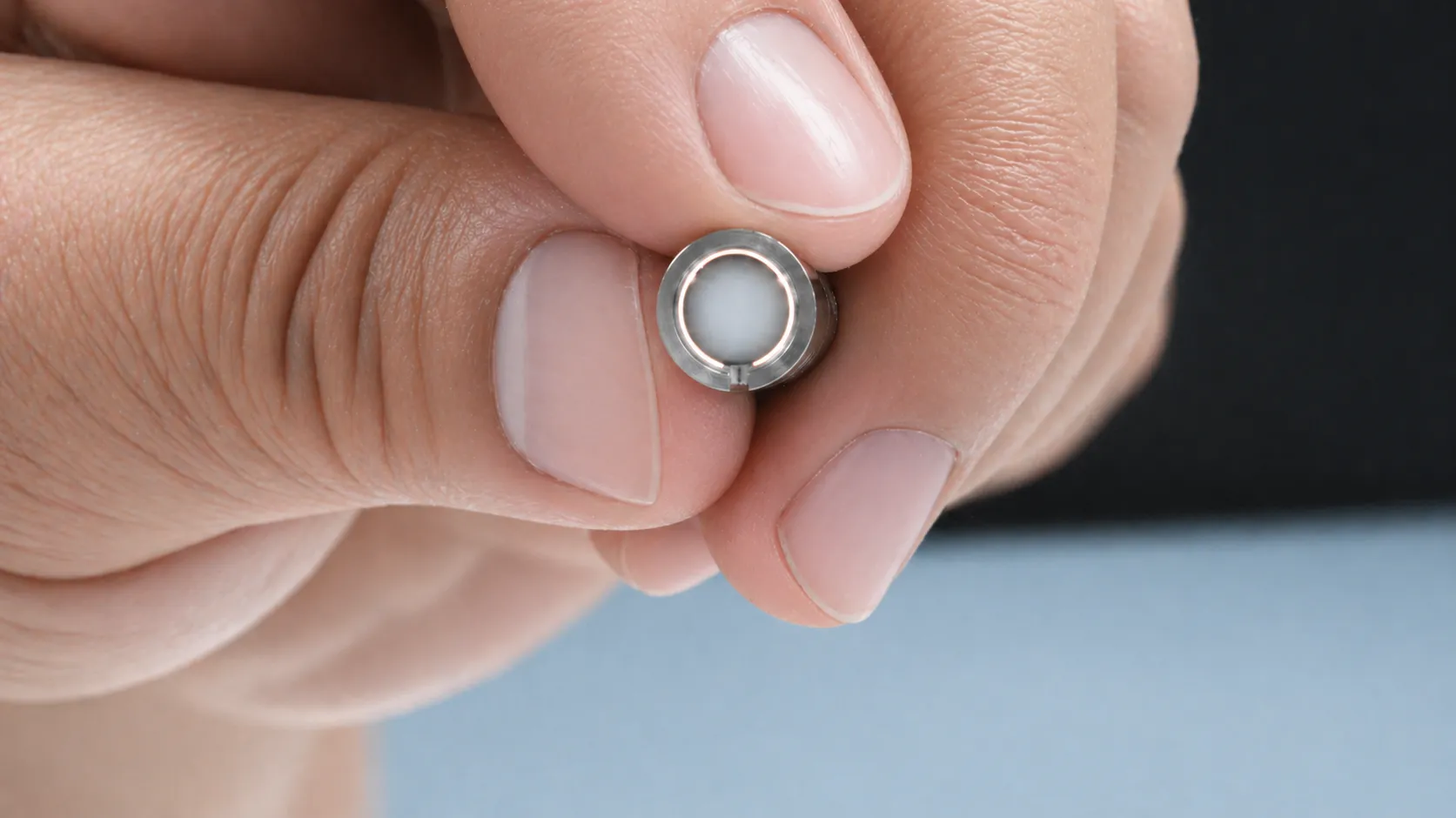

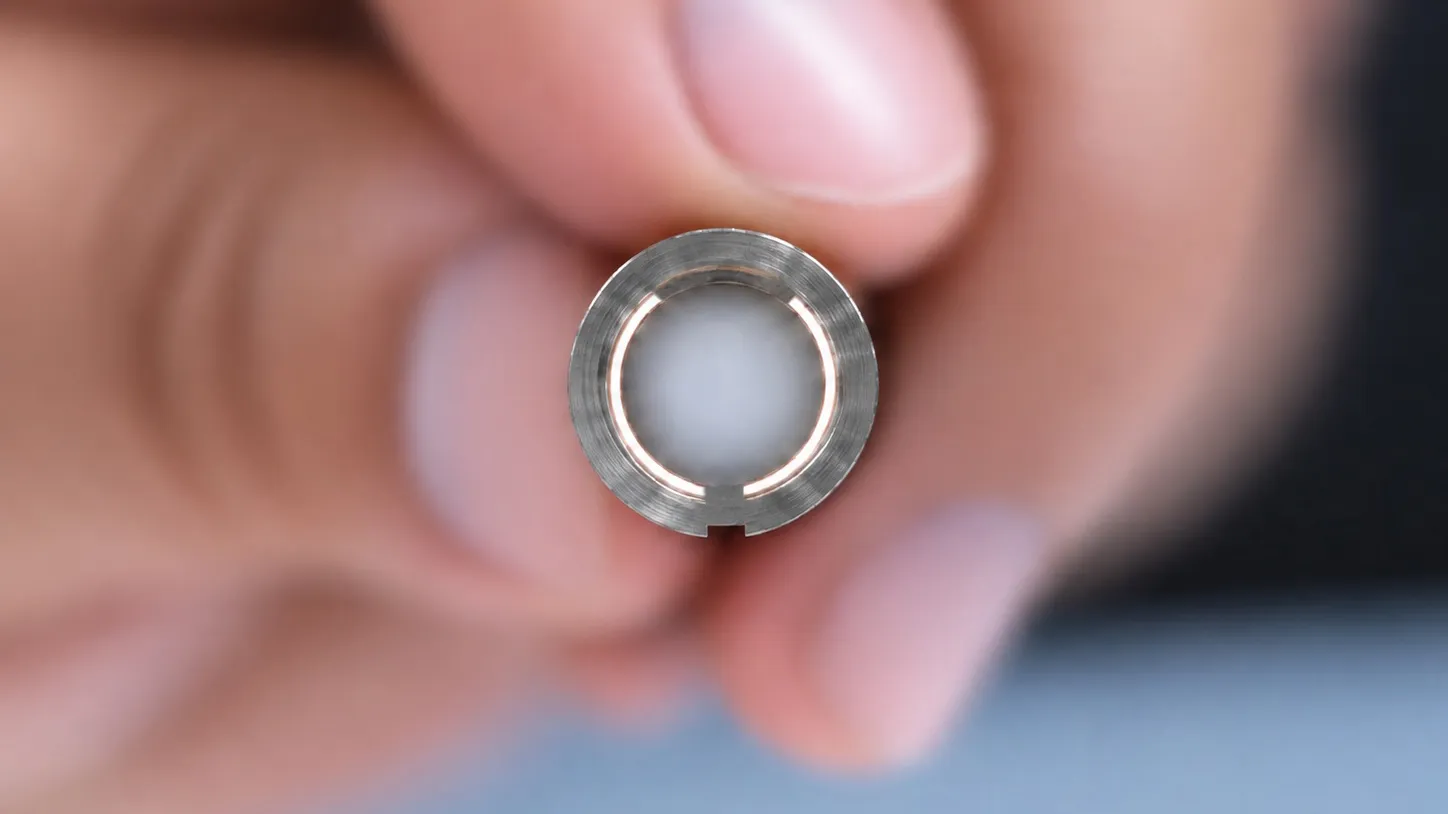

  3. If the light forms a ring-shaped pattern with a darkened center, similar to a solar eclipse effect, the barrel features the T-N.T. Eclipse structure.

【What Is the T-N.T. Eclipse Barrel?】

The T-N.T. Eclipse Barrel is a specialized design developed based on the T-N.T. S+ Dual Bore Air-Cushion Inner Barrel system, featuring an additional guiding structure at the barrel entrance. The primary purpose of this design is to help the BB enter the inner barrel closer to the center axis while maintaining better alignment with the nozzle.

At the same time, we also aimed to reduce the contact area between the lower surface of the BB and the inner barrel, minimizing unnecessary friction resistance and improving overall trajectory consistency and shooting stability.

【How Does the Eclipse Structure Work?】

In most standard inner barrels, the BB naturally sits closer to the lower side of the barrel during feeding. Once HOP pressure is applied, the BB receives upward force and friction simultaneously.

If the BB’s initial position is unstable, or if excessive lower-surface friction occurs, it may lead to issues such as:

• BB bouncing
• Unstable trajectory
• Left/right deviation
• Inconsistent HOP pressure distribution
• Reduced heavy BB stability

The T-N.T. Eclipse structure creates a special guiding effect near the barrel entrance, helping the BB re-center itself before fully entering the inner barrel.

This design allows the BB to contact the HOP rubber more evenly while reducing unnecessary friction on the lower surface. During development, we found that when the BB starts closer to the barrel center axis, both rotational consistency and long-range trajectory stability can improve significantly.

【Benefits of the T-N.T. Eclipse Barrel】

Because the BB remains closer to the center position while reducing lower-surface resistance, the T-N.T. Eclipse Barrel provides several advantages:

• Improved BB centering effect
• Better nozzle-to-BB alignment
• Reduced lower-surface friction
• Lower HOP pressure requirement
• Better compatibility with heavy BB setups
• Reduced BB bouncing after passing the HOP contact point
• Improved trajectory consistency and stability
• Better long-range flight performance

These differences are often more noticeable on GBB platforms, where feed position, BB alignment, and HOP pressure consistency directly affect shooting performance.

【Why Does the Eclipse Structure Reduce HOP Pressure Requirements?】

Because the T-N.T. Eclipse structure helps the BB contact the HOP pressure area more efficiently, stable backspin can still be achieved even under lower HOP pressure settings.

This means players do not need excessive HOP pressure to maintain stable flight performance.

This design helps:

• Reduce energy loss caused by excessive friction
• Minimize instability caused by overly aggressive HOP pressure
• Improve air seal and shooting consistency
• Maintain more stable long-term performance

These differences become even more noticeable when using heavy BB setups, where the balance between HOP pressure, friction, and rotational efficiency becomes increasingly important.

【Compatible Platforms】

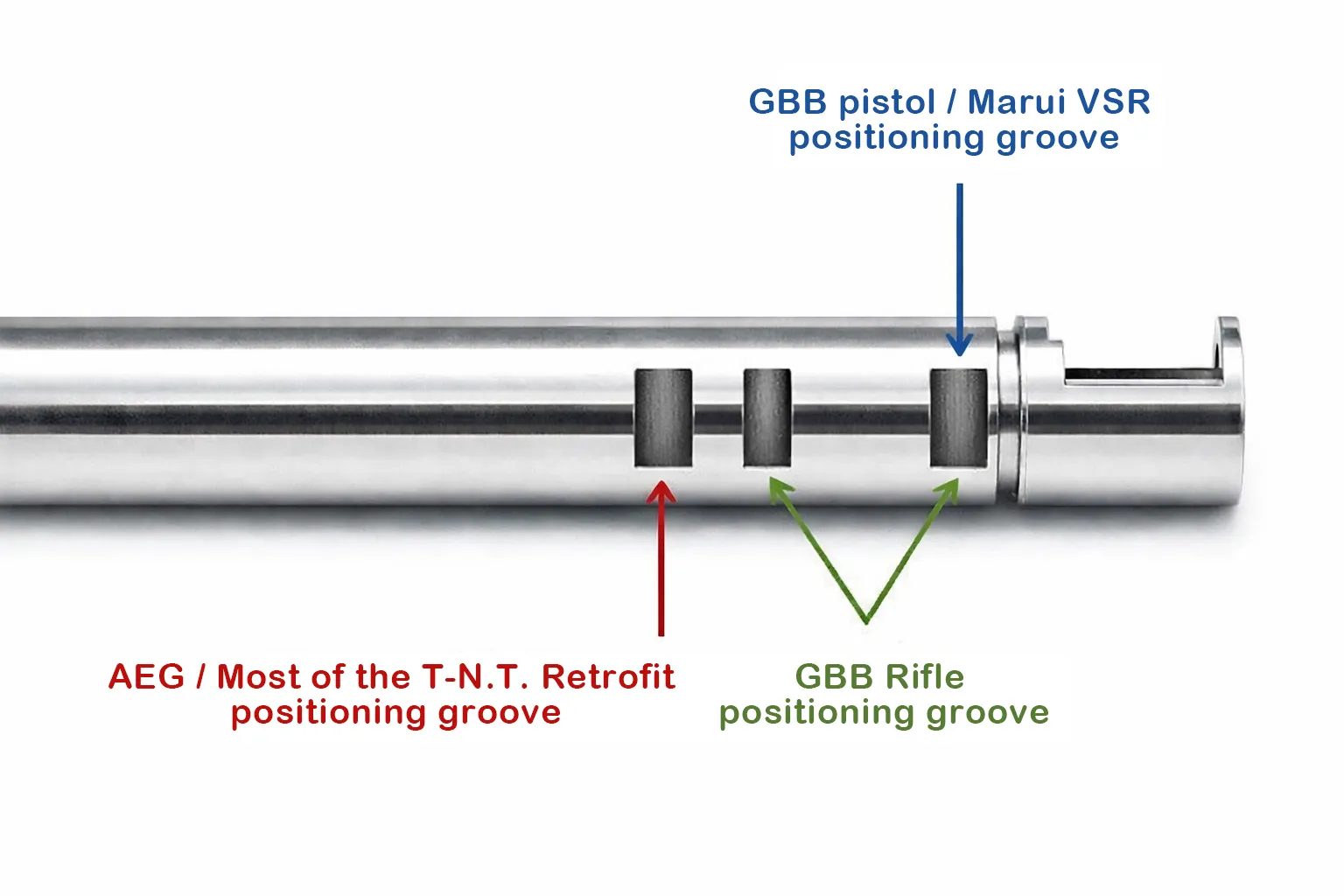

The T-N.T. Eclipse Barrel is designed as a universal platform system. By selecting the appropriate T-N.T. HOP rubber for each platform, the barrel can be installed on most AEG, GBB, and VSR systems.

Since nozzle length and feed position vary between platforms, we still recommend using the correct T-N.T. HOP rubber configuration to achieve the best stability and trajectory performance.
